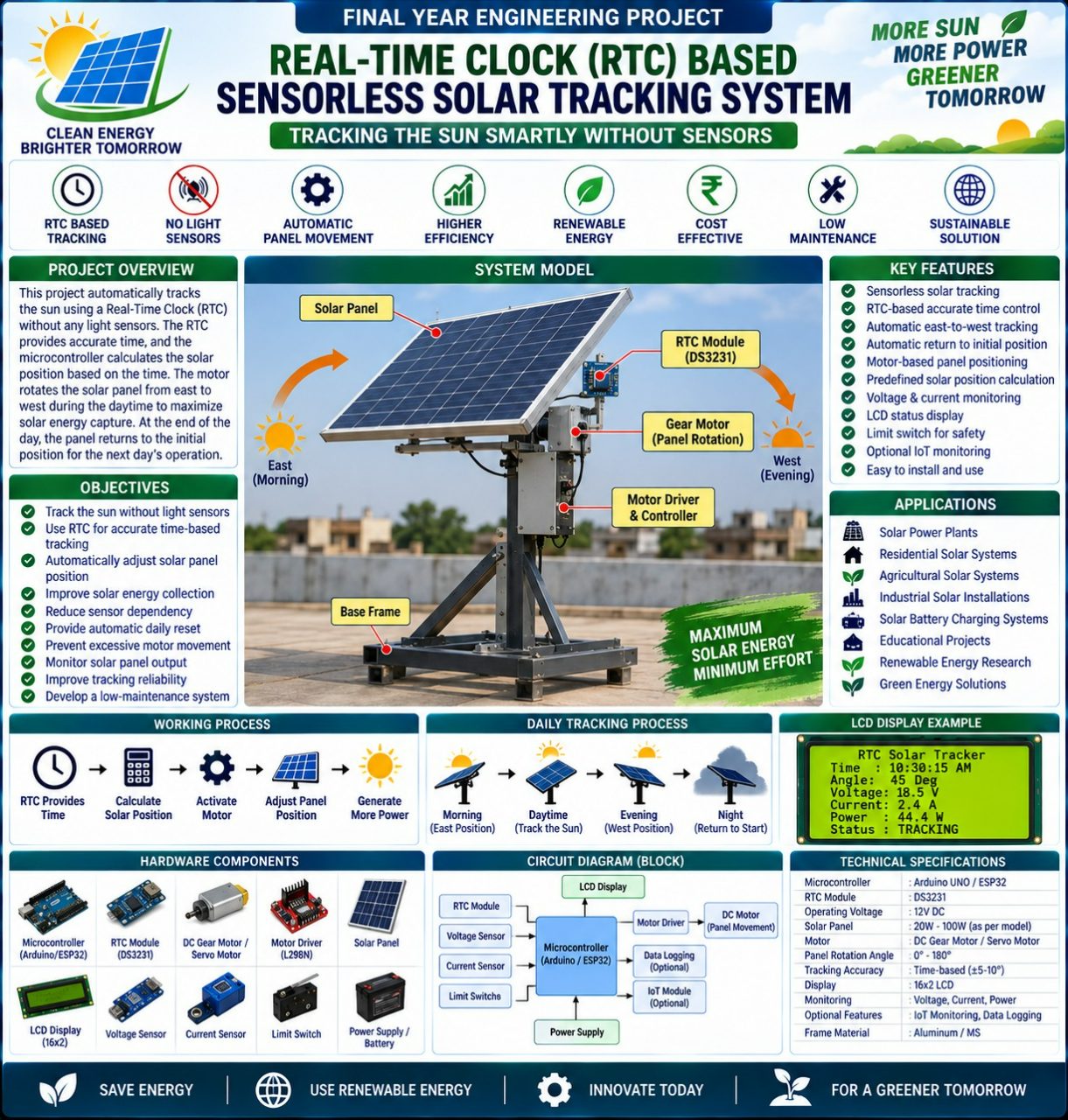

Real-Time Clock (RTC)-Based Sensorless Solar Tracking System

The Real-Time Clock (RTC)-Based Sensorless Solar Tracking System is designed to automatically adjust the position of a solar panel according to the calculated position of the sun throughout the day without using light sensors such as LDRs.

The RTC provides accurate time information to the controller. Based on the programmed solar-position schedule, the system calculates the required panel position and operates the motor to move the solar panel from east to west during the daytime. At the end of the day, the panel automatically returns to its starting position for the next day's operation.

Key Features

☀️ Sensorless Solar Tracking
⏰ RTC-Based Accurate Time Control
🔄 Automatic East-to-West Tracking
↩️ Automatic Sunrise Position Reset
⚙️ Motor-Based Panel Positioning
📐 Predefined Solar Position Calculation
🔋 Solar Energy Optimization
🛑 Limit Protection
📊 Voltage & Current Monitoring
🖥️ LCD Status Display
🌐 Optional IoT Monitoring

Objectives

✅ Track the Sun Without Light Sensors
✅ Use RTC for Accurate Time-Based Tracking
✅ Automatically Adjust Solar Panel Position
✅ Improve Solar Energy Collection
✅ Reduce Sensor Dependency
✅ Provide Automatic Daily Reset
✅ Prevent Excessive Motor Movement
✅ Monitor Solar Panel Output
✅ Improve Tracking Reliability
✅ Develop a Low-Maintenance Tracking System

Working Process

RTC Provides Time → Controller Determines Solar Position → Required Panel Angle Calculated → Motor Activated → Solar Panel Position Adjusted → Limit Position Checked → Solar Power Generated → Evening Return-to-Start Position

Tracking Process

🌅 Morning: Panel positioned toward the East
☀️ Daytime: Panel gradually follows the calculated solar position
🌇 Evening: Panel moves toward the West
🌙 Night: Panel returns to the predefined East/start position

Display Features
⏰ Current Time
☀️ Solar Tracking Status
📐 Current Panel Angle
🔄 Motor Direction
⚡ Solar Voltage
🔋 Solar Current
📊 Power Generation
🟢 System Status
🛑 Limit-Switch Status
Applications

☀️ Solar Power Plants
🏠 Residential Solar Systems
🌾 Agricultural Solar Systems
🚜 Solar-Powered Agricultural Equipment
🏭 Industrial Solar Installations
🔋 Solar Battery Charging Systems
🏫 Educational Renewable Energy Projects
🌱 Green Energy Research

📦 Includes:
✅ Complete Source Code • RTC-Based Tracking Algorithm • Motor Control • Solar Panel Tracking Mechanism • Circuit Diagram • Panel Position Control • Voltage/Current Monitoring • Documentation • Project Report • Installation Guide • User Manual • Technical Support
